Local First, Building Portable Embedded C++ pipeline with self-hosted CI

28 Feb 2026 in Blog / Embedded Software , Tags: C++

A experimental setup on how to build stack using “Woodpecker CI, Cosmopolitan, and Google Pigweed” for small firmware teams to automate build-test-flash pipelines for their embedded systems

In good DevOps practice, automation across building, testing, and releasing software plays a prominent role. CI (continuous integration) acts as a safety net: it takes raw materials (code), assembles them (builds), and quality-checks them (tests). If CI fails, the second half of the acronym (CD: continuous delivery/deployment) becomes too risky and can lead to serious production issues. There are several DevOps tools providing complete CI/CD services, but things get tricky while developing and testing embedded software.

The Problem Nobody Is Talking About

CI/CD is very stable in web and backend development. For embedded firmware, the picture is more uneven.

Some teams have real pipelines, which include tools like GitLab CI/CD runners that cross-compile, run QEMU simulations, flash a board over a self-hosted runner with USB access, collect serial logs, and push artifacts to a dashboard.

These setups work and they exist in production today. But they’re almost always custom-built, tricky to maintain, and tightly coupled to one specific board, one specific CI platform, and one team’s institutional knowledge. When the engineer or team who set it up leaves, the pipeline starts to rot.

At the other end, many small firmware teams have no CI at all, or a GitHub Actions workflow that cross-compiles and calls it a day. But logical bugs that a 10-second host simulation would have caught survive to hardware integration, where they take days to diagnose. Full regression testing is sometimes missing, so QA engineers have to do it manually.

The gap isn’t between “no CI” and “perfect CI.” It’s between ad-hoc, fragile setups and something that’s portable across development boards and OSes, self-hosted without cloud dependency (due to compliance requirements, aerospace, defense, and medical teams often resist pushing proprietary source code or massive firmware binaries to Microsoft or GitLab’s public cloud platforms), and structured enough that it doesn’t collapse when the individuals who set up the entire CI pipeline leave the team.

The structural problems are the same across teams of this size: the build system and test hardware are physically separate, hosted cloud CI runners have no USB or JTAG access, host simulation and device results live in separate codebases maintained by different people. When simulation passes and the board fails, diagnosis starts from zero. That is the gap this stack closes - not full analog HIL, but the step before it that most small teams are missing entirely.

What HIL Testing Is, and Why It’s a bit Broken ?

Hardware-in-the-loop (HIL) testing is the gold standard for embedded validation: production firmware runs on a real controller while surrounding sensors, actuators, and bus traffic are simulated in a controlled, repeatable way.¹² In high-reliability domains such as automotive, aerospace, and medical systems, this class of testing is often mandatory in practice because it catches timing and integration failures that pure host-side tests can miss.³⁴

Why HIL is relevant to this post This post is not claiming to replace full HIL. It is showing the practical path that makes HIL adoption possible for small firmware teams.

This stack (Woodpeacker CI + Cosmopolitian + Pigweed) covers the missing middle layer between no-hardware CI and full industrial HIL, while keeping the boundaries explicit.

1. Problem evidence: Embedded defects often survive compile-only CI and appear only during hardware interaction.
2. HIL relevance: HIL exists to expose exactly those hardware-interaction failures under repeatable conditions.¹²
3. Current gap in small teams: Full HIL benches are costly and operationally heavy, so many teams stop at host tests or manual bench checks.⁵⁶
4. What this stack contributes: Pigweed provides host/device test architecture, Cosmopolitan reduces host-tool portability friction, and Woodpecker provides self-hosted automation near real boards.
5. Systematic outcome: Teams move from manual build-flash-check loops to repeatable on-target regression, which is the operational precondition before scaling toward higher-fidelity HIL.

The problem is structural and it shows up the same way regardless of team size:

1. The build system and the test hardware are physically separate Running on-device tests means manually flashing a binary and reading results, nothing in the build pipeline knows the board exists.
2. Hosted cloud CI has no direct concept of your lab hardware. GitHub-hosted runners don’t have your USB probes, serial adapters, or JTAG devices attached.
3. The validation gap. Host tests and device tests are separate activities with separate codebases, often maintained by different people. When simulation passes and the board fails, there is no shared ground, diagnosis starts from zero.
4. Toolchain portability. The cross-compiler that produces the firmware binary behaves differently across developer machines, creating “works on my machine” problems before you even reach the hardware.

This stack helps address all four in practical day-to-day engineering work - without mandatory cloud dependency and without requiring an expensive full HIL rig on day one ⁷. It can also be adopted incrementally instead of forcing an all-at-once CI platform migration. However, it does not simulate analog signals, environmental conditions, or replace compliance tooling for ISO 26262 or IEC 62304. Those gaps are real and worth knowing before you read further.⁶

---

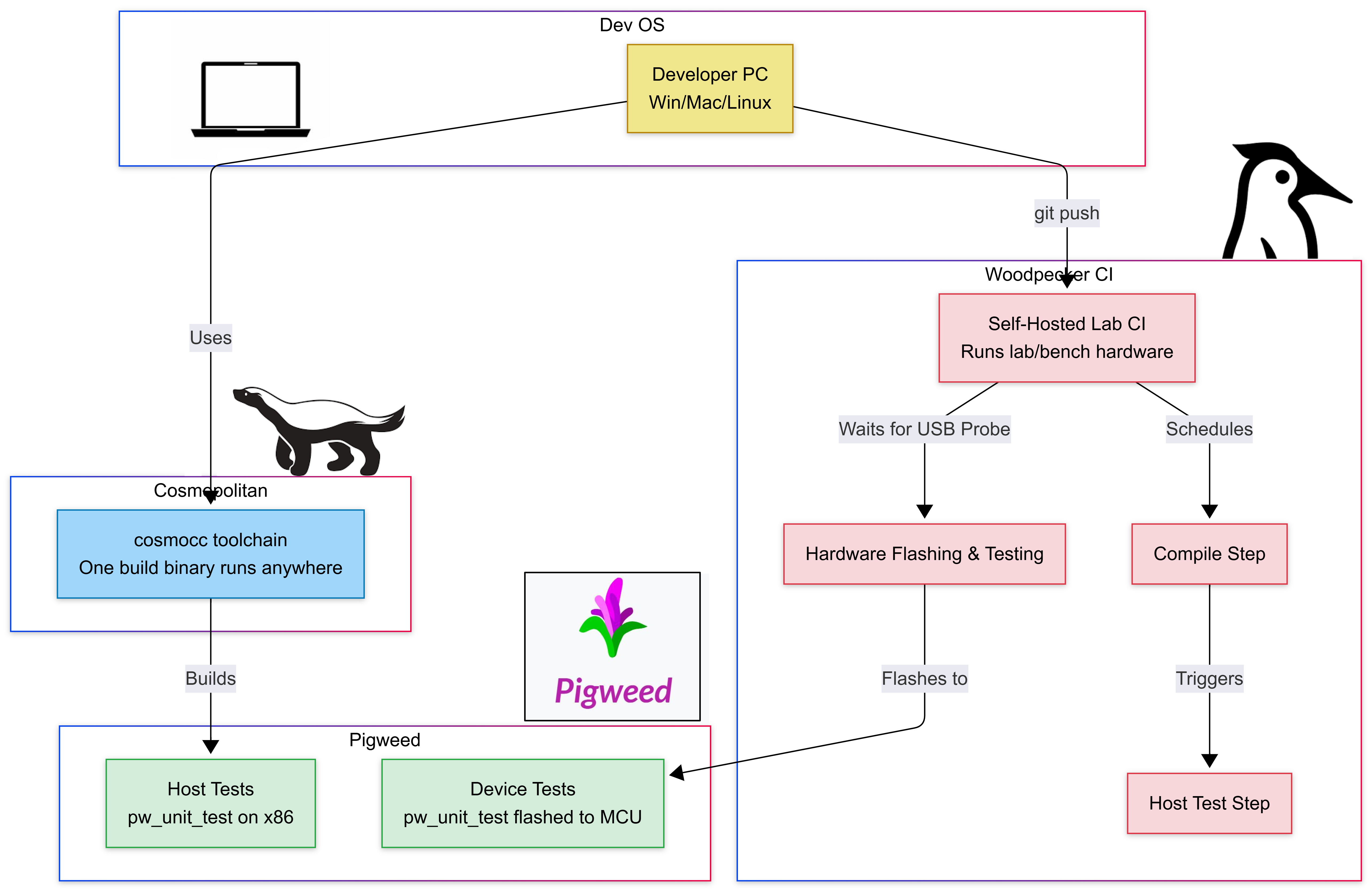

Three Tools, One Insight

The stack is Woodpecker CI + Cosmopolitan Libc + Google Pigweed. None of these tools were designed together, but they address complementary pain points:

Embedded teams don’t lack motivation for using CI/CD workflow, they lack infrastructure that isn’t hardware-locked, OS-specific, or overly cloud-dependent. This stack is all three: hardware-agnostic, portable, and cloud-independent. While full analog HIL (simulating every complex electrical characteristic) may remain out of scope for small teams, the combination of these tools targets the automation gap. They move the needle from “manual laboratory testing” to automated on-target testing, allowing teams to catch bugs early in the CI/CD pipeline rather than at the very end of the V-Diagram

Here’s what each tool contributes:

Tool	Role in the solution	Why it matters
Google Pigweed	The Embedded Framework	Pigweed is a collection of libraries designed for embedded development. It provides the hardware-agnostic C++ architecture layer by offering robust modules for unit testing, RPCs, and device abstraction that work the same on your host machine as they do on the microcontroller, collapsing the gap between simulation and real hardware testing.
Cosmopolitan Libc	The Portability Engine	This is the “secret sauce.” Cosmopolitan Libc allows you to compile C++ once into an Actually Portable Executable (APE) that runs natively on Linux, Mac, Windows, FreeBSD, and OpenBSD. This eliminates OS-specific barriers and makes build tools and test runners platform-independent.
Woodpecker CI	The Orchestrator	A self-hosted, lightweight container-based CI runner. Because it is easy to self-host, it eliminates cloud dependence. You can run it on a local server or even a Raspberry Pi. It keeps your IP and binaries on-premises, on your lab bench, with USB access to real hardware and no cloud dependency.

This stack is particularly potent because of how these three interact:

Eliminating “It works on my machine”: With Cosmopolitan, your build toolchain or test runner is a single binary that runs on any dev’s laptop and the CI runner without needing to manage complex dependencies or specific OS versions.

Local-First Development: Pigweed emphasizes that code should be testable on the host (your PC). You can run thousands of unit tests in seconds using Woodpecker before the code ever touches a physical chip.

Low Overhead: Unlike heavy enterprise CI suites, Woodpecker is tiny and fast. When paired with the efficiency of C++/Pigweed, your feedback loop (the time from “code save” to “test pass”) shrinks from minutes to seconds.

---

What This Stack Actually Gets You (and What It Doesn’t)

Before overselling this: running pw_unit_test on a board via a USB probe is not the same as what the industry calls HIL testing. A real HIL rig simulates analog sensor signals, controls power rails, injects noise, and emulates bus traffic with precise timing.

This stack also doesn’t address:

• Analog signal simulation. If your firmware reads a 4–20 mA current loop, you still need a DAC or signal generator to produce that signal in a test.
• Environmental testing. Temperature chambers, EMC testing, and vibration are outside the scope of any CI pipeline.
• Compliance certification. ISO 26262 (automotive), IEC 62304 (medical), and DO-178C (aerospace) all require specific evidence and traceability that a YAML pipeline alone doesn’t provide.
• Mock fidelity. The mock backends you write for host testing are only as good as your understanding of the hardware. If you mock away the very behavior that causes the bug, the test is green and useless.

What this stack does get you: a free, self-hosted pipeline that automates the dull parts like compiling, running logic tests on the host, flashing firmware, and collecting results so your limited engineering hours go toward the hard problems instead of manual “build-flash-check” cycles.

For a firmware team of 3–8 engineers at an industrial IoT company or a hardware startup that doesn’t have a $100K test rig budget. Also were the team are working with different Operating systems(OS), containerization is a necessity.

---

Getting Started

The recommended path to building this pipeline:

1. Start with Pigweed’s Sense Showcase: Fork it and study how the facade/backend pattern is applied to a real project.
2. Add pw_unit_test to one module: Pick a logic-heavy module in your current firmware, abstract the hardware, and write five host-side tests.
3. Stand up Woodpecker CI: Run the Docker Compose file on a lab machine. Get host-side tests running in CI automatically.
4. Build your Cosmopolitan runner: Compile your host-side test harness with cosmocc and commit the binary to fix portability.
5. Attach a board to your Woodpecker agent: Configure pw_target_runner, write a hardware-gated step, and run your first automated on-device test in CI.

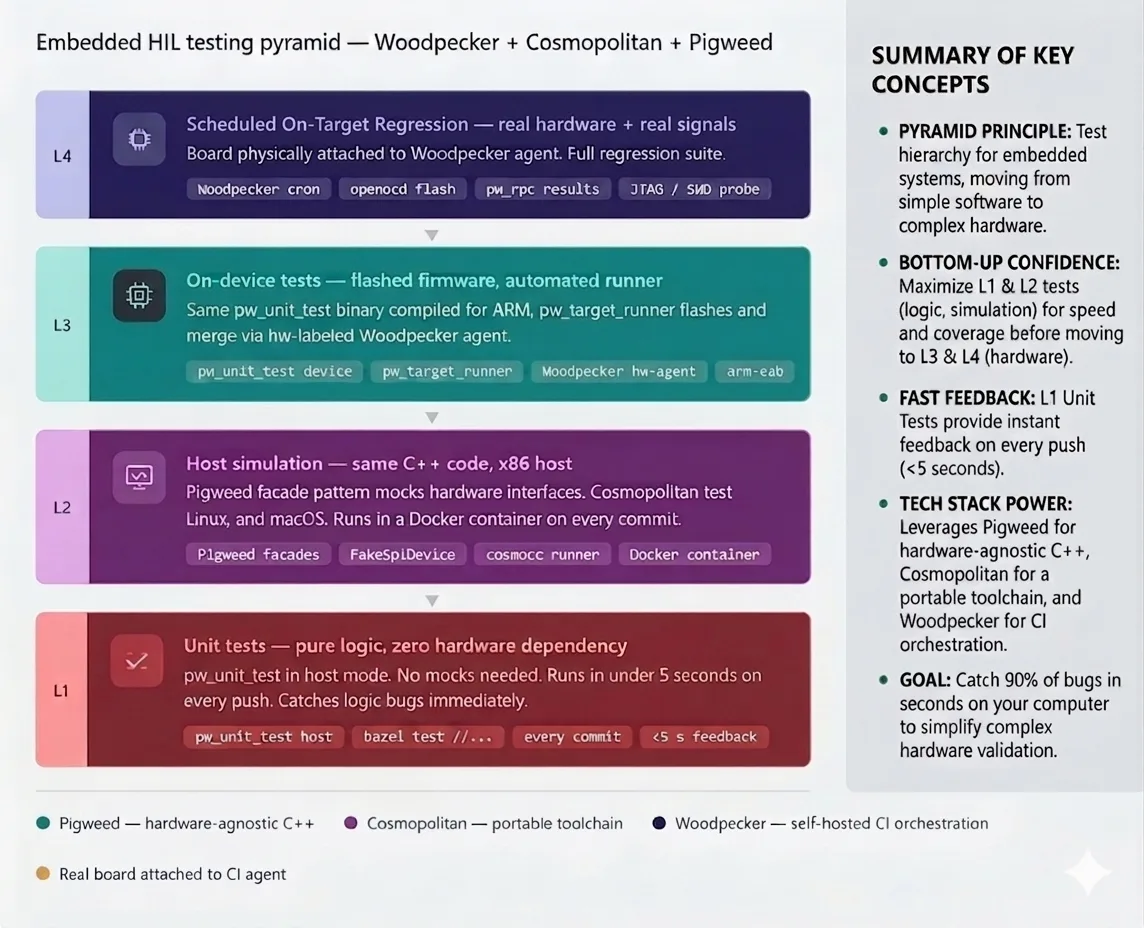

The Testing Pyramid This Stack Enables

The embedded testing pyramid has four levels. This stack covers the first three well and partially addresses the fourth:

Each level catches a different class of bug:

Level 1 (Unit Tests):

Pure logic, zero hardware dependency. Runs in < 5 seconds on any machine.

• What it does? Pigweed provides a framework for host-side unit tests that can run rapidly without needing physical hardware.
• Why it matters? This aligns with the “Model-in-the-Loop” (MIL) and “Software-in-the-Loop” (SIL) stages described in the V-Diagram, where the controller and environment are simulated to catch logic errors early.⁸

Level 2 (Host Simulation):

Pigweed facade pattern — HAL mocked for host. Cosmopolitan test runner guarantees an identical environment on all OSes.

• What it does? Pigweed is designed for “hermetic building,” meaning software is built in a completely isolated environment. This makes it less sensitive to the libraries, tools, or configurations installed on the host machine, ensuring the development environment is reproducible. Cosmopolitan Libc reinforces this by allowing C/C++ code to be “build-once run-anywhere,” providing an identical execution environment across Linux, Mac, Windows, and even BIOS.

• Why it matters? Using Pigweed’s architecture (often utilizing a facade pattern for hardware abstraction layers) alongside Cosmopolitan ensures that host-side simulations are highly reliable and consistent across different developer operating systems.

Level 3 (On-Device Tests):

Flashed firmware with automated test runner reporting over pw_rpc. Run on every PR via Woodpecker hardware-attached agent.

• What it does? Pigweed explicitly supports on-device unit tests and communication with hardware via pw_rpc.
• Why it matters? Woodpecker CI provides the automation engine to trigger these tests. By using a “hardware-attached agent” (a common extensible use case for Woodpecker’s container-based pipelines), teams can automate the flashing and testing of firmware on every pull request.

Level 4 (Scheduled On-Target Regression):

Triggered on main branch merges or nightly. Note: this level is where the gap between “on-target unit tests” and true regression tests (with analog signal simulation) becomes important. This stack automates on-target testing well; Full HIL with simulated physical signals still requires additional test equipment.

• What it does? On-target execution on the hardware confirms that your firmware runs correctly on real silicon. True HIL goes further , it electrically emulates the sensors and actuators your firmware controls, to simulating the entire plant setup.
• Why it matters? While this stack automates the software side (on-target tests), the sources acknowledge that full HIL remains a “pivotal” and more complex stage involving mathematical representations of dynamic systems and specialized I/O interfaces. The stack effectively bridges the gap from “no testing” to “automated hardware testing.”

The key advance is that levels 1 and 2 now share the same C++ source code as levels 3 and 4. When a test passes on the host and fails on the device, you’ve isolated a genuine hardware-specific bug.

---

Pillar One: Pigweed — Write Once, Test Everywhere

Pigweed is Google’s open-source embedded C++ framework, battle-tested in Pixel phones, Nest thermostats, DeepMind robots, and satellites. Its central architectural contribution is the facade/backend pattern.

The Facade Pattern in Practice

Every hardware interaction — SPI, GPIO, UART, I2C, a timer — is expressed as a C++ abstract class. In firmware, you instantiate the real backend that talks to hardware registers. In host simulation, you instantiate a mock backend that logs calls, returns scripted values, or asserts on call sequences. The business logic never changes.

// Your sensor driver — hardware-agnostic
class PressureSensor {
 public:
  explicit PressureSensor(pw::spi::Device& spi) : spi_(spi) {}

  pw::Result<float> ReadPressurePa() {
    // Reads over SPI — works on host (mock SPI) and on STM32 (real SPI)
    std::array<std::byte, 3> response;
    PW_TRY(spi_.Read(response));
    return ParsePressureBytes(response);
  }

 private:
  pw::spi::Device& spi_;
};

On the host, spi_ is a FakeSpiDevice that returns pre-programmed byte sequences. On an STM32 board, it’s a real SPI peripheral backed by DMA. The test for ReadPressurePa() runs identically in both environments.

pw_unit_test: One Test Binary, Two Targets

Pigweed’s unit test framework is GoogleTest-compatible but uses no dynamic memory allocation — it runs on bare-metal MCUs. The same test source compiles to an x86 binary for your CI container and an ARM binary for your board:

TEST(PressureSensorTest, ReturnsCorrectPressureForKnownBytes) {
  FakeSpiDevice fake_spi({0x00, 0x67, 0x1A});
  PressureSensor sensor(fake_spi);

  auto result = sensor.ReadPressurePa();

  ASSERT_TRUE(result.ok());
  EXPECT_NEAR(result.value(), 101325.0f, 1.0f);
}

This test catches logic bugs at Level 1. When it also passes on the device at Level 3, you’ve confirmed hardware integration.

pw_watch and pw_target_runner: Automated On-Device CI

pw_watch monitors your source tree and, on file save, compiles only the affected tests and flashes them to an attached device. pw_target_runner can distribute this across multiple boards running in parallel — the embedded equivalent of parallelized CI workers.

In a Woodpecker pipeline, this becomes:

# In a hardware-gated Woodpecker workflow file:
steps:
  - name: device-tests
    image: ubuntu:22.04
    commands:
      - pw_target_runner_client -host localhost -port 8080 -binary build/test_binary.elf
    volumes:
      - /dev/ttyACM0:/dev/ttyACM0   # The attached board

---

Pillar Two: Cosmopolitan — The Toolchain Portability Problem

There’s a subtler problem that Pigweed alone doesn’t solve: your build tools themselves aren’t portable. A Python script that parses firmware map files on your Ubuntu CI machine fails on a Windows developer’s laptop because of path separator differences. These mismatches create builds that are “reproducible” in theory and brittle in practice.

Cosmopolitan Libc addresses this for host-side tooling. It reconfigures GCC and Clang to produce Actually Portable Executables (APEs), polyglot binaries that run natively on Linux, macOS, Windows, FreeBSD, and NetBSD on both x86-64 and ARM64 without recompilation.

The embedded toolchain itself (arm-none-eabi-gcc, OpenOCD, pw CLI, Python environment) still needs to be installed and version-matched. Cosmopolitan solves one narrow piece: the test runner binary itself being portable. But a Windows developer without the ARM toolchain, without OpenOCD, and without Pigweed’s bootstrap still can’t build firmware or run device tests.

What This Means for an Embedded Pipeline

Your host-side test infrastructure, the binary that runs pw_unit_test results on the host, the serial port listener that collects device test output, the log parser and the code coverage reporter, all of these can all be built with cosmocc instead of cc.

The resulting binaries are checked into the repository and work identically everywhere.

A new team member on Windows clones the repo, runs ./tools/run_host_tests, and gets the same results as the Linux CI agent. No Docker required for local development.

# Build the host test runner once with cosmocc
cosmocc -o tools/run_host_tests src/test_runner.c

# Now this binary works on:
# - Ubuntu
# - macOS
# - Windows 11 (native, not WSL)
# - Raspberry Pi 5 lab bench server (ARM64)

Check Your Scope The firmware binary itself is still compiled with arm-none-eabi-gcc. Cosmopolitan is for your development tooling, not for the bare-metal MCU. Also note that Cosmopolitan ships its own C++ standard library (ctl/) rather than libstdc++, so complex C++ code with heavy template metaprogramming or bleeding-edge C++20/23 features may hit compatibility gaps. For simple CLI tools and test runners, this is rarely an issue.

---

Pillar Three: Woodpecker CI — Self-Hosted, Hardware-Attached, Free

GitHub Actions and GitLab CI aren’t built for embedded firmware: their runners are ephemeral cloud VMs with no physical I/O. You can’t attach a JTAG probe, a USB-serial adapter, or a power relay to a cloud runner.

Woodpecker CI runs on your hardware. The server is a lightweight Go binary that talks to your Git forge. Agents, the workers that execute pipeline steps (Not to be confused with Agentic AI agents) A Woodpecker agent is a separate process (often a container) which run wherever you need them. One agent on a spare laptop in the lab bench has access to every USB device connected to that machine.

The Agent Model for Hardware

Woodpecker’s edge for embedded CI is its agent label system. You label an agent, say for example: hw-stm32h750 and restrict workflows to that agent(machine) where the board is physically connected.

Woodpecker routes entire workflow files to agents via labels. So you split your pipeline across multiple workflow files:

for example, this yaml file builds the basic build for the stm32H750 MCU

Steps of operation:

• (1) CMake build with ARM GCC in Release mode

• (2) host-based tests via Cosmopolitan binary

• (3) Pigweed presubmit checks for linting, clang-format, and C++ analysis. Runs on generic agents

# .woodpecker/build-and-host.yaml
# Runs on any agent (no hardware needed)

steps:
  - name: build
    image: gcc-arm:13
    commands:
      - cmake -B build -DTARGET=stm32h750 -DCMAKE_BUILD_TYPE=Release
      - cmake --build build -j$(nproc)

  - name: host-tests
    image: ubuntu:22.04
    commands:
      - ./tools/run_host_tests   # Cosmopolitan binary, works anywhere

  - name: lint-and-presubmit
    image: ubuntu:22.04
    commands:
      - pw presubmit --step pragma_once --step clang_format --step cpp_checks

Next, This ‘.woodpecker/device-tests.yaml’ is a Woodpecker CI pipeline for hardware-in-the-loop tests on an STM32H750 board.

Pipeline Triggers Routes to agents labeled hardware: stm32h750 (board attached). Triggers only on push events to the main branch.

Flash and Test Step Uses ubuntu:22.04 image. First, OpenOCD flashes build/firmware.elf to the board via stm32h750b-disco.cfg config (program, verify, reset, exit). Then, pw_target_runner_client executes build/test_binary.elf tests via Pigweed’s target runner server on localhost:8080.

# .woodpecker/device-tests.yaml
# Routed to the agent with the board attached

labels:
  hardware: stm32h750

when:
  - branch: main
    event: push

steps:
  - name: flash-and-device-tests
    image: ubuntu:22.04
    commands:
      - openocd -f board/stm32h750b-disco.cfg -c "program build/firmware.elf verify reset exit"
      - pw_target_runner_client -host localhost -port 8080 -binary build/test_binary.elf

And lastly, This ‘.woodpecker/hil-nightly.yaml’ is for nightly Hardware-in-the-Loop (HIL) regression testing by Woodpecker CI pipeline on an STM32H750 board.

Pipeline Triggers Routes to agents labeled hardware: stm32h750 (board attached). Triggers on cron event scheduled as nightly (e.g., daily at midnight).

HIL Regression Step Uses ubuntu:22.04 image. Runs

python3 tools/hil/run_regression_suite.py --port /dev/ttyACM0

to execute a comprehensive Python-based test suite over the board’s serial port (ACM0, in Linux), verifying firmware stability overnight.

# .woodpecker/hil-nightly.yaml
# Nightly regression on the hardware agent

labels:
  hardware: stm32h750

when:
  - event: cron
    cron: nightly

steps:
  - name: hil-regression
    image: ubuntu:22.04
    commands:
      - python3 tools/hil/run_regression_suite.py --port /dev/ttyACM0

Summary

• The build and host-test workflow runs on every commit — no hardware needed.

• The device-test workflow triggers on merges to main, routed to the lab agent with the board attached.

• The HIL regression runs nightly.⁹

Why Not GitHub Actions with Self-Hosted Runners?

Woodpecker has three major advantages for the specific embedded use case:

1. Air-gap friendly: It has no dependency on the cloud. In defense or medical devices, traffic to github.com is often prohibited. Woodpecker works fully offline.
2. Minimal overhead: The server uses a SQLite database and can run comfortably on a Raspberry Pi 5 with ~100MB of RAM.
3. Hardware declarations: The agent label mechanism is straightforward for routing hardware-gated workflows, though note that labels apply at the workflow level, not per-step. You’ll need separate workflow files for cloud-only and hardware-attached steps.

---

Where Host Tests Meet Hardware

The core payoff of this stack is narrowing the gap between what passes in simulation and what works on real silicon. It doesn’t eliminate that gap, hardware surprises are inherent to the domain but it makes the gap visible and diagnosable instead of something you discover at system integration.

Without this kind of setup, hardware surprises tend to surface during system integration which can take weeks, escalating the cost of diagnosis.

---

Resources

• Pigweed documentation — start with the Tour of Pigweed and the Sense showcase
• Pigweed SDK announcement (Google, Aug 2024)
• Cosmopolitan Libc — cosmocc toolchain and APE format
• Woodpecker CI — documentation and Docker Compose quick start
• Golioth Firmware SDK HIL testing — a detailed real-world HIL CI implementation worth studying

Sources

1. What is Hardware-in-the-Loop Testing? ↩ ↩²

2. A Guide to hardware-in-the-loop (HIL) testing in 2026 - OPAL-RT ↩ ↩²

3. Why HIL is Becoming Critical for Medical Device Testing ↩

4. HIL test systems in the automotive industry ↩

5. HIL Test Systems ↩

6. Hardware-in-the-loop: key challenges and considerations ↩ ↩²

7. Problems and Solutions in Applying Continuous Integration to Cyber-Physical Systems ↩

8. What Is Hardware-In-Loop (HIL) and Software-In-Loop (SIL) Testing? ↩

9. Building a regression testing pipeline for HIL in electrification teams ↩
